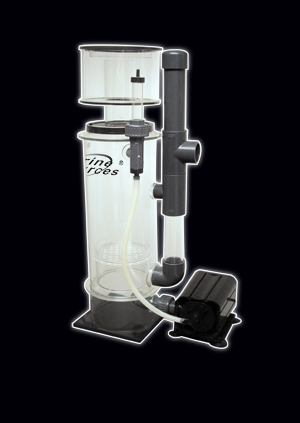

MS-200-6540

类别:
SKYPE:
My status

Technical specifications
Item No.:MS-200-6540
Skimmer type:Internal type
Size(diameter/height MM):200/595
Pump/power:HX-6540/33W
Max. size of the tank (L):1500
Water outlet: 50mm
Foot print(MM):400/230

MS protein skimmer feature

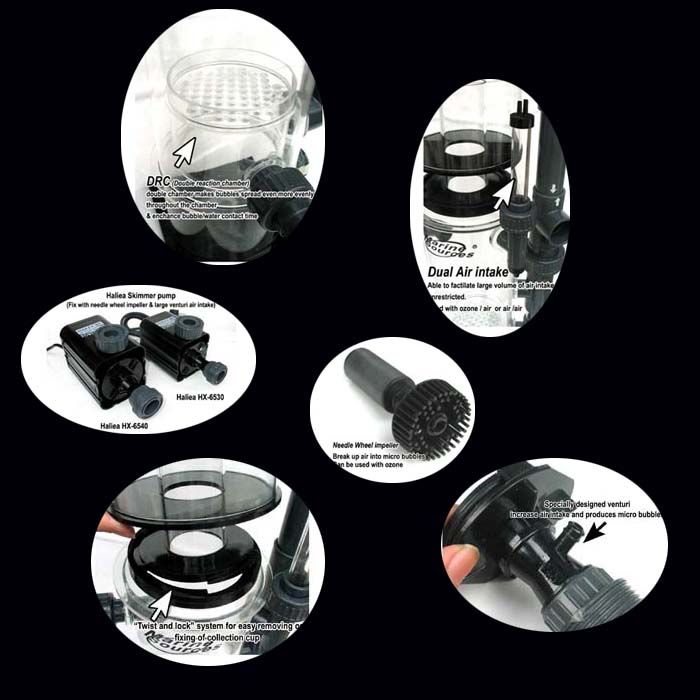

1 The main characteristic of MARINE SOURCES MS protein skimmers is their double reaction chamber( DRC System ), which can make the bubble spread evenly over the upside reaction chamber and prolong the contact time between the water and the bubble. The special design of the lotus root-shape funnel can make the bubble be richer, thereby reach to the utmost performance.
PS: Click HERE to know the graphic demonstration about DRC system.
2 New improved pin-type needle wheel impeller. Needle-wheel system with venturi enables this specially-design to produce foam formed in a more stable way. Air are mix into very fine micro bubbles, producing excellent air-water mixture, extending the pump’s useful life and minimizing vibrations. Creating the best surface area for bubble production.
3 Venturi air intake. It not only can increase the air intake volume greatly and enhance the skimmer efficiency, but also can keep the pump running silence.
Dual Intake inlets best for maximum skimming efficiency. Built-in ready for any device to be connected such as ozone, etc.
5 Smooth-twist collection cup. Smooth-twist removable collection cup  for quick and effortless cleaning. Made with top quality cast acrylic, which allows the use of ozone.
Absolutely low power consumption  The latest improved needle wheel impeller can efficiently lower the water frictional pressure in the working situation,  thereby it can reduce the pump wattage consumption to the maximum 33 Watt.( HX-6540 )
* Click HERE for the detail of the actual power consumption.
MS Pro series skimmer technology
